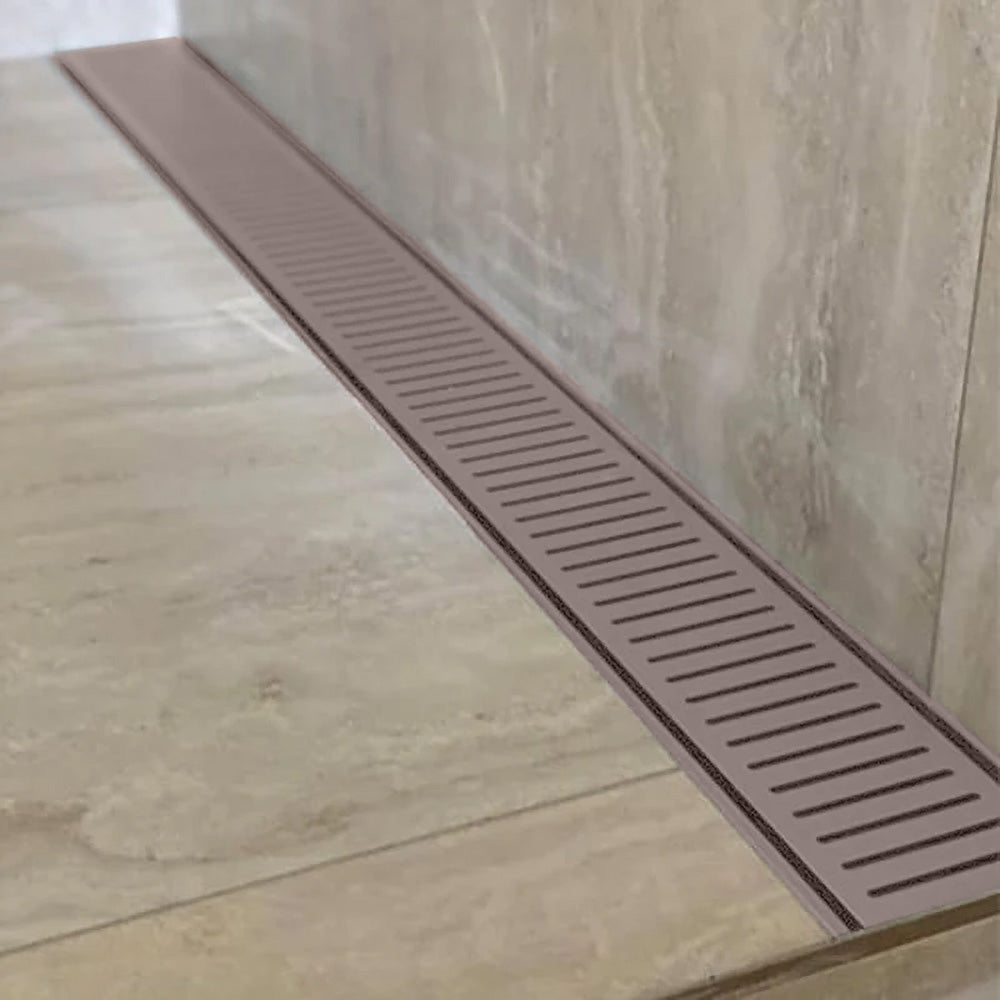

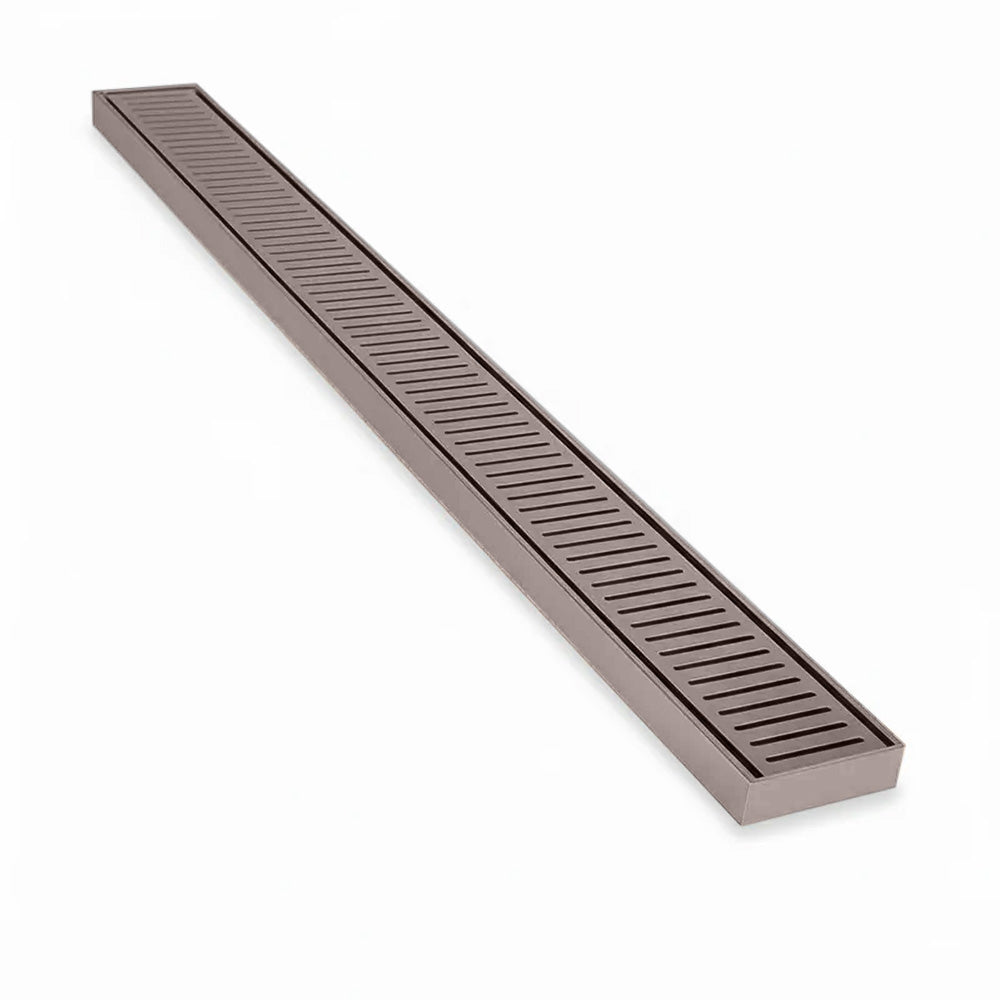

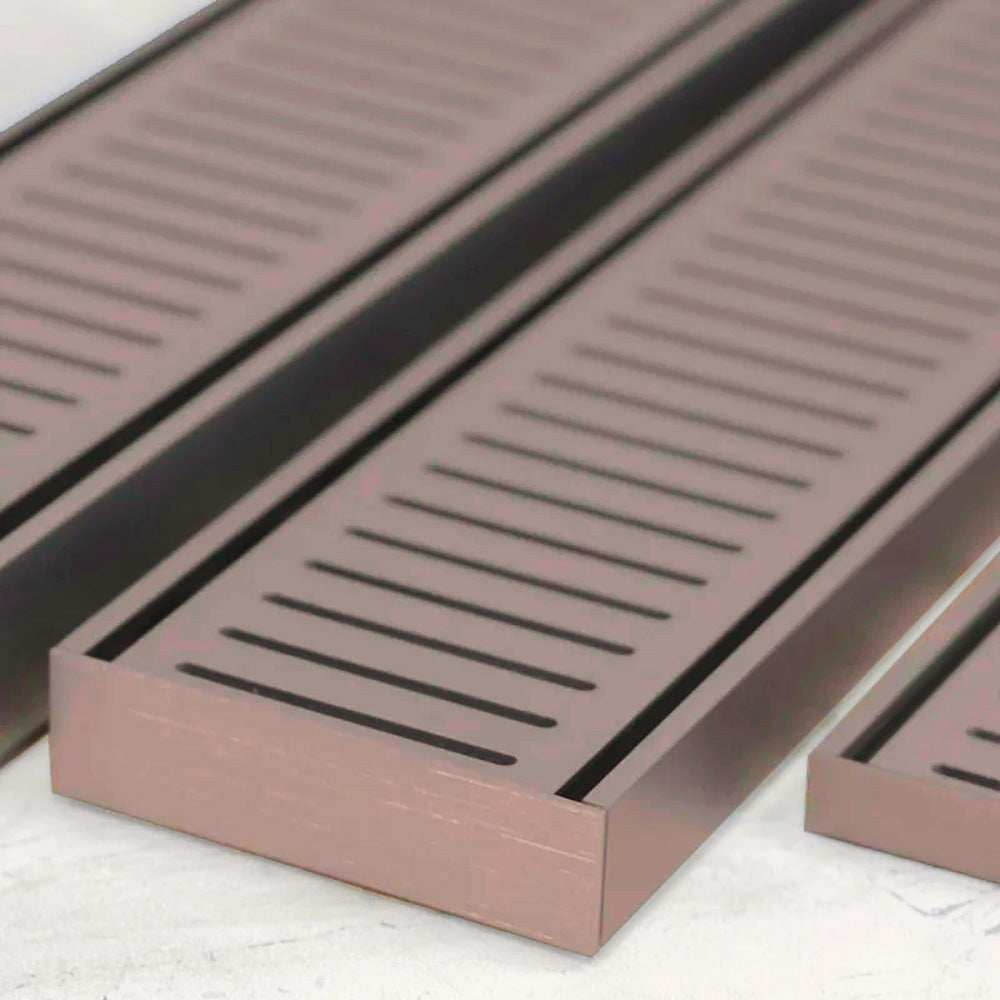

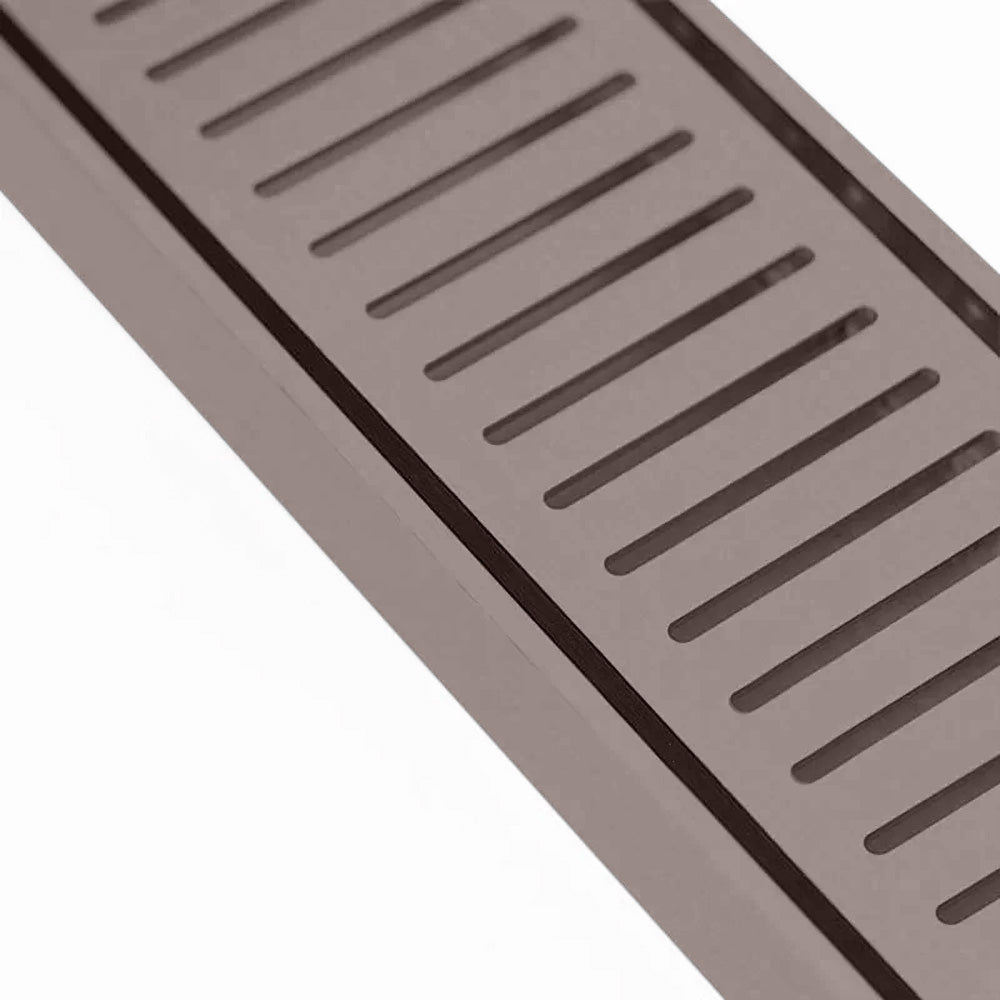

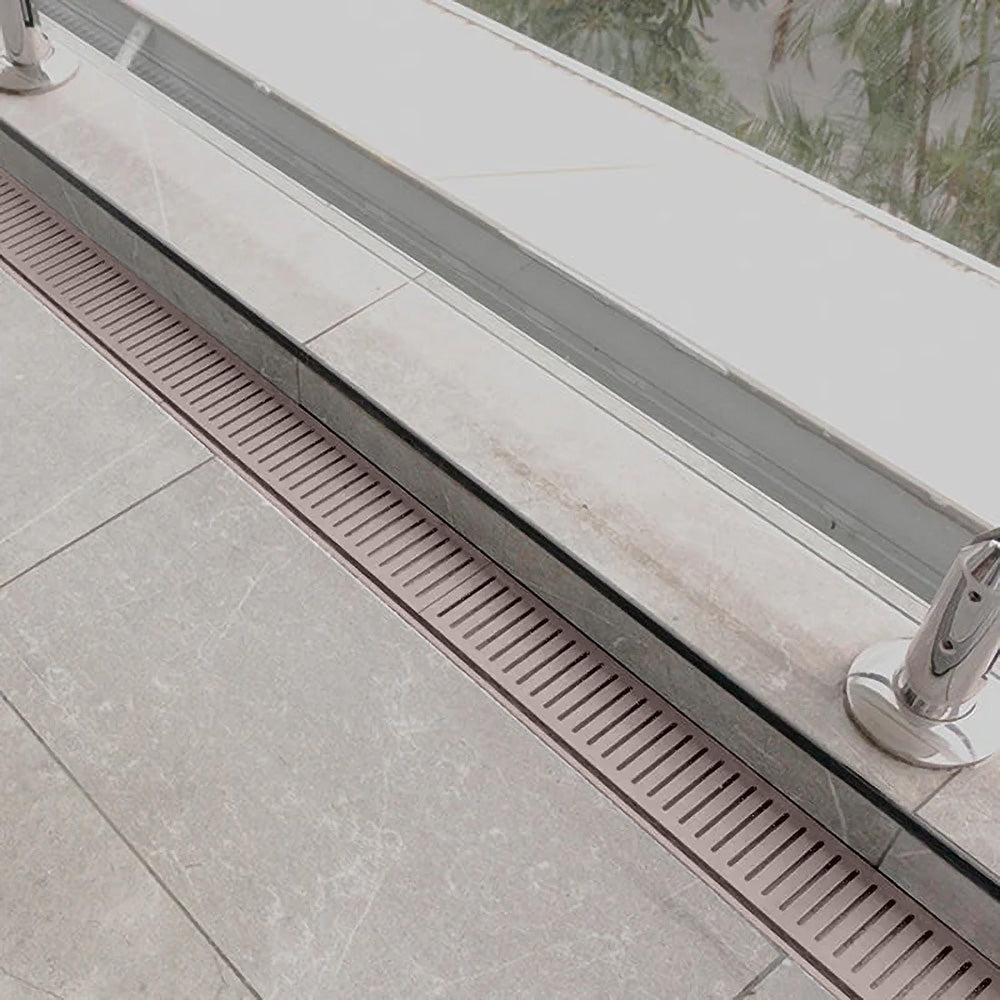

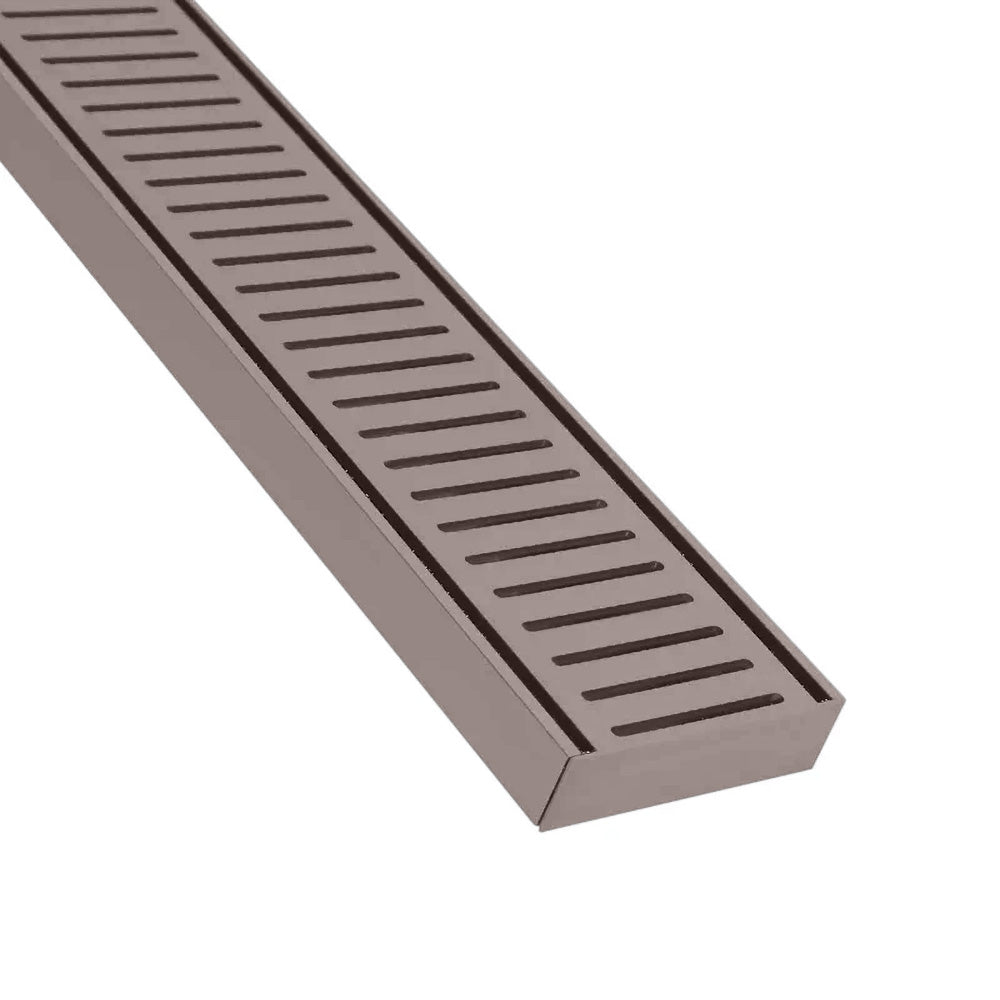

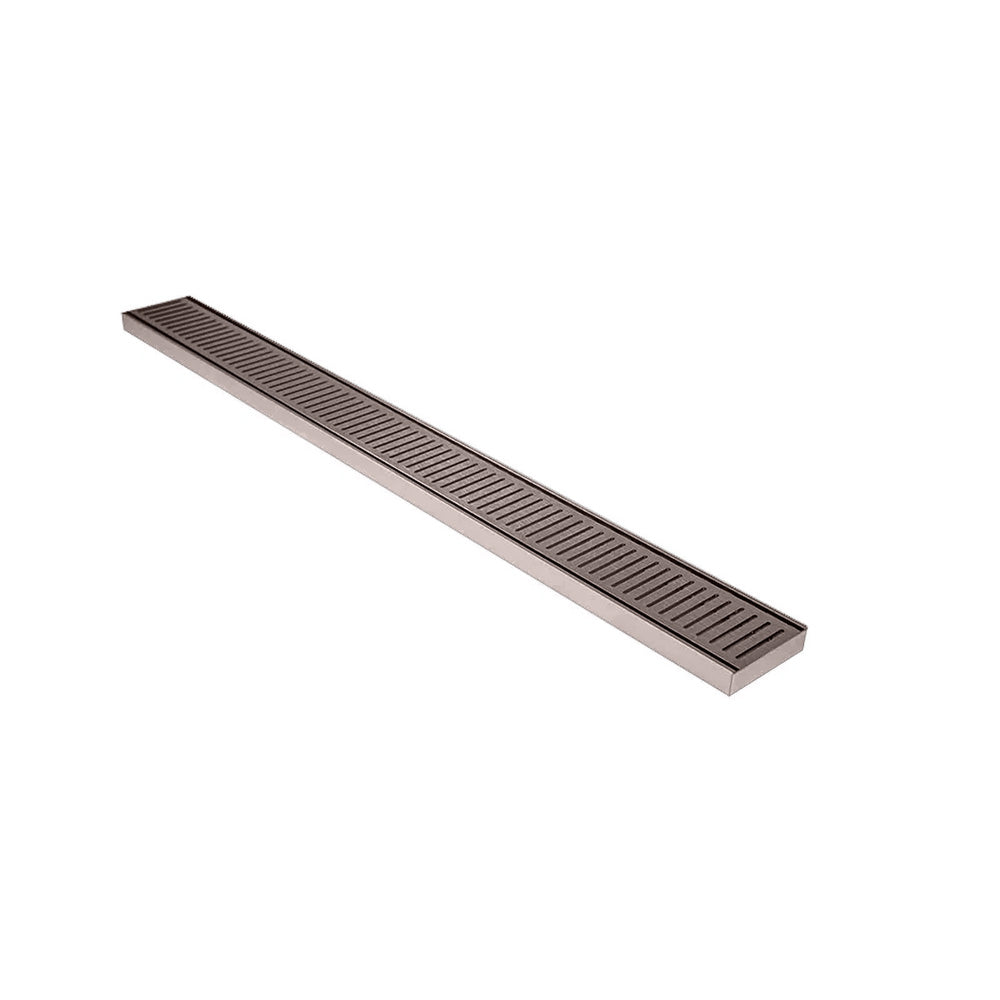

Aluminium Slimline Shower Grate Drain Brush Bronze 300-3000x100x21mm
The Shower Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost-effective, and versatile drainage solution for any indoor and outdoor wet area. With Bathroom Hub Shower Grates there is no compromise on functionality or style when creating designer living spaces.
Specifications:
- Size (mm): (300-3000)L x 100W x 21H
- 2 Waste Sizes: 40 and 80mm
- Color: Brush Bronze
- Rustproof
- Lightweight
- Takes tiles up to 10mm thick
- Top grate easily removed for cleaning
- Different colour choices to suit application
- Easy to cut to desired length
- Easy to clean (easy to roll out system)
- No welding required
- No major plumbing involved as waste can be positioned anywhere along the bottom tray
- Perfect use for indoor/outdoor applications
- Lifetime: Rustproof Warranty
- Package Contents:
- 1 x Shower grate
- 1 x Waste
- 1 pair of end cap
Cutting & Assembly Instructions:
For easy cutting of shower grate, we recommend the use of a compound miter saw fitted with a multi-material cutting blade with 80 teeth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
- Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
- Cut the top grate 1mm shorter than the bottom tray to allow for easy roll-in of top grate and tidy fit
- Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
- Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
- Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
